JRD-2100

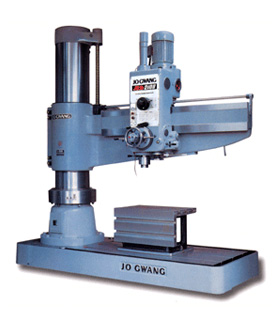

JRD-2100 Á¦Ç°»çÁø

JRD-2100 Àμâ

Á¦Ç°»ç¾ç
»ç¾ç (SPECIFICATION) UNIT JRD-2100
°¡°ø´É·Â
(Working capacity)
µå¸±ÀÛ¾÷(Drlling) ÁÖö(Castiron) mm 95
°­(steel) mm 75
ÅÇÀÛ¾÷(Tapping) ÁÖö(Castiron) mm 80
°­(steel) mm 60
º¸¸µÀÛ¾÷(Boring) ÁÖö(Castiron) mm 280
°­(steel) mm 220
Ä÷³Á÷°æ(Column Diameter) (A) mm 500
Ä÷³Ç¥¸é¿¡¼­ ÁÖÃ༾Ÿ±îÁö °Å¸®
(Distance Column Surface to Spindle Center)
Min. (B) mm 390
Max. (C) mm 2,130
Ä÷¯Á߽ɿ¡¼­ ¾Ï³¡±îÁö °Å¸® (D)
(Distance Center of Column End of Arm)
mm 2,680
º£À̽º À­º¯¿¡¼­ ÁÖÃà´Ü±îÁö °Å¸®
(Distance Base to Spindle)
Min. (E) mm 420
Max. (F) mm 1,770
±â°è³ôÀÌ(Height Floor to Top of Column) (G) mm 3,050
±â°èÃѳôÀÌ(Height Floor to Top of Head) (H) mm 3,500
º£À̽º±Ô°Ý(Base Size) Min. (I ¡¿ J) mm 3,200 ¡¿ 1,300
Max. (K) mm 295
¾Ï»óÇÏÀ̵¿°Å¸®(Vertical Travel of Arm) mm 920
º£À̽º ÀÛ¾÷¸éÀû(Working Area of Base) mm 2,180 ¡¿ 1,300
Áß·®(Net Weight) kg 7,500
ÁÖÃà ¹× ½½¸®ºêÁ÷°æ(Diameter of Spindle/Quilll) mm 88/110
ÁÖÃà »óÇÏ À̵¿°Å¸®(Vertical Traverse of Spindle) mm 420
ÁÖÃàÀÇ Å×ÀÌÆÛ(Morse Taper in Spindle) MT #5
ÁÖÃàȸÀüº¯È¯¼ö(Range of Spindle Speed) Step 16
ÁÖÃàȸÀü¼ö¹üÀ§(Number of Spindle Speed) r.p.m 19-1,832
ÁÖÃàÀ̼ۼӵµº¯È¯¼ö(Number of Spindle Speed) Step 0.03-1.23
ÁÖÃàÀ̼ۼӵµ¹üÀ§(Range of Feed Speed) mm/rev 12
ÁÖÃà¸ðŸ(Spindle Drive Motor) kw 7.5
¾Ï »óÇϸðŸ(Arm Elevating Motor) kw 3.7
Àý»èÀ¯ÆßÇÁ(Coolant Pump) w 100
Ŭ·¥ÇÁ ¸ðŸ(Clamping Moter) kw 0.75

º» »ç¾çÀº Á¦Ç°ÀÇ °³¼±À» À§ÇØ ¿¹°í¾øÀÌ º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.

[º»»ç] ´ëÀü±¤¿ª½Ã ´ë´ö±¸ À¾³»µ¿ 450-40 Tel. 042) 626-4445 / [°øÀå] ÃæºÏ û¿ø±º Çöµµ¸é Á߻︮ 199-4 Tel. 043) 267-4445~6 Fax. 043) 267-4447
